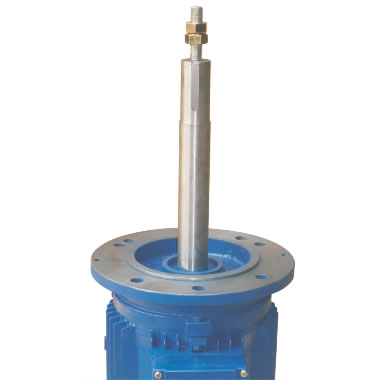

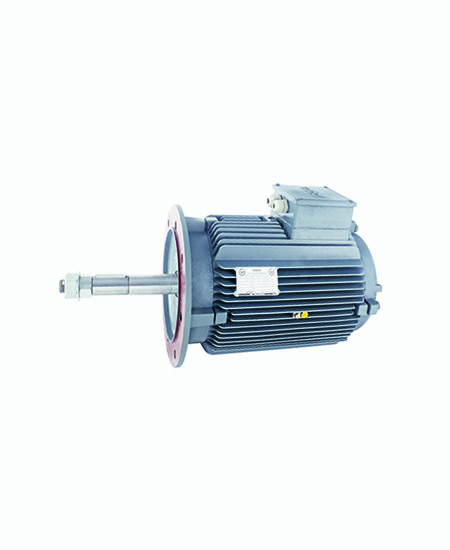

Cooling Tower Motors
Our specialized cooling tower motors are engineered for continuous operation in high-humidity environments. Featuring corrosion-resistant materials and advanced sealing technologies, these motors deliver reliable performance while withstanding the demanding conditions of cooling tower applications. Designed for IP55/IP56 protection with optional anti-condensation features.
| Specification | Details |
|---|---|
| Power Range | 1 HP to 30 HP (0.75 kW to 22.37 kW) |
| Voltage | 380-415V, 50Hz (220V, 460V, 575V options available) |
| Enclosure | TEFC (Totally Enclosed Fan Cooled) or WP-II (Weather Protected) |
| Protection Class | IP55 standard (IP56 optional) |
| Efficiency Class | IE1, IE2 Premium Efficiency (IE3 available) |
| Frame Size | 80 to 180L |
| Insulation Class | F (155°C) with special moisture-resistant treatment |
| Corrosion Protection | Epoxy-coated windings, stainless steel hardware |
| Shaft | Stainless steel or carbon steel with corrosion-resistant coating |
| Bearings | Sealed-for-life bearings with grease relief |
| Mounting | Foot mounted (B3), flange mounted (B5/B14), or C-face |
| Ambient Temperature | -20°C to +60°C (with 40°C base rating) |
| Special Features | Condensation drainage, anti-condensation heaters optional |
