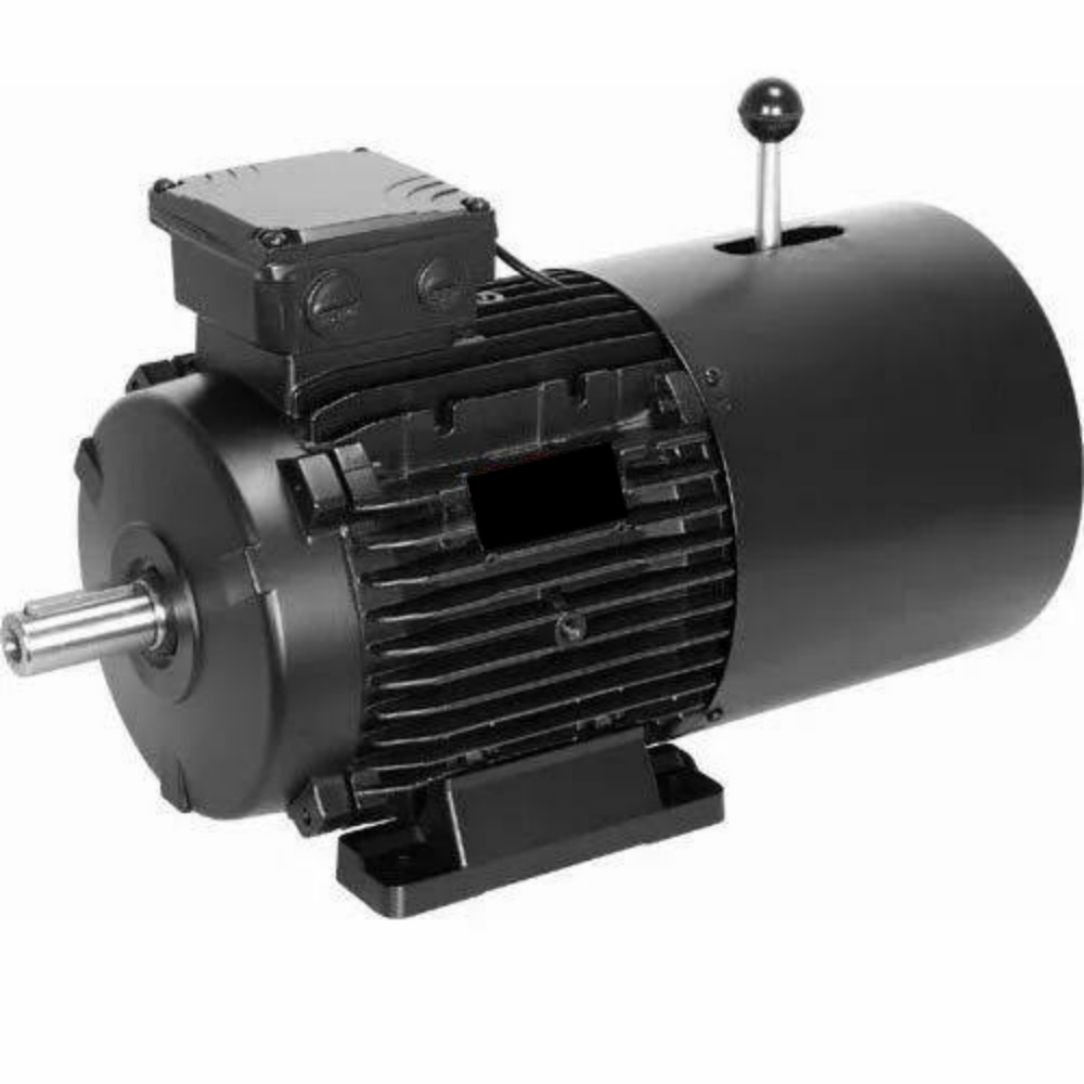

DC Brake Motors - Precision Speed Control with Reliable Braking
Our high-performance DC brake motors combine the precise speed control of DC motors with reliable electromagnetic braking. Ideal for applications requiring quick stopping, position holding, or controlled deceleration. These motors offer excellent torque characteristics and smooth braking action.
Technical Specifications
| Specification | Details |
|---|---|
| Power Range | 1.5 kW to 15 kW (2HP to 20HP) |
| Voltage | 12V, 24V, 48V, 90V, 180V DC (Custom voltages available) |
| Motor Type | Permanent Magnet DC with integrated brake |

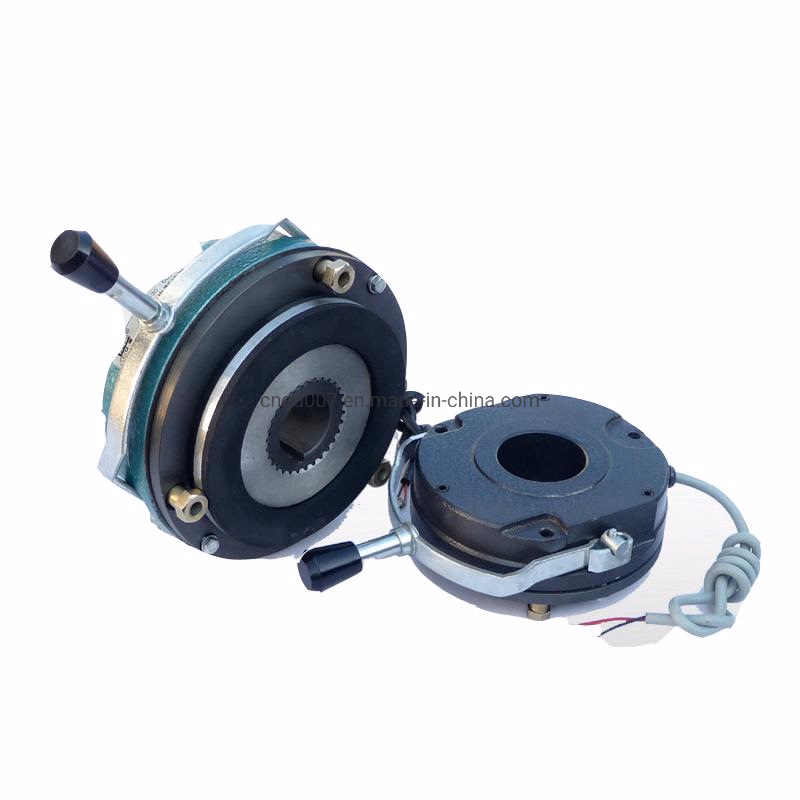

| Brake Type | Spring-applied, electrically released DC brake |
| Brake Torque | 1 Nm to 150 Nm (depending on model) |
| Brake Voltage | 12V DC or 24V DC standard |
| Response Time | < 0.05 sec (brake release), < 0.01 sec (brake application) |
| Speed Range | 500 to 4000 RPM (variable speed control) |
| Enclosure | IP54 (Totally Enclosed) |
| Frame Sizes | 80 to 180 |
| Insulation Class | B (130°C) or F (155°C) available |
| Mounting | Foot Mounting (B3), Flange Mounting (B5/B14) options |
| Duty Cycle | S1 (Continuous duty) or S2 (Short-time duty) |
Common Applications
- Conveyor systems requiring precise stopping
- Elevator and hoist mechanisms
- Packaging machinery with position control
- Medical equipment needing controlled deceleration
- Automated material handling systems
