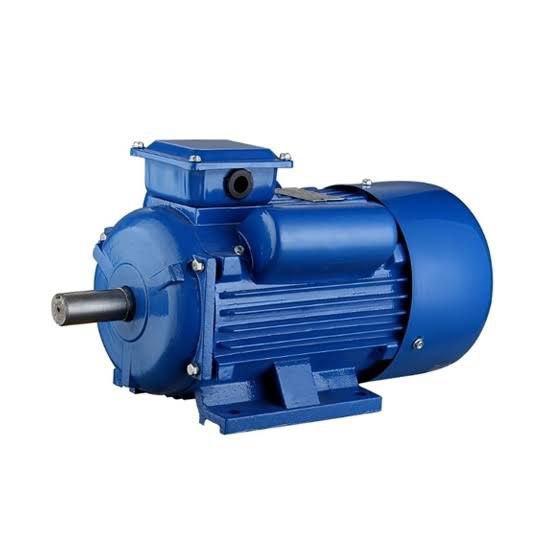

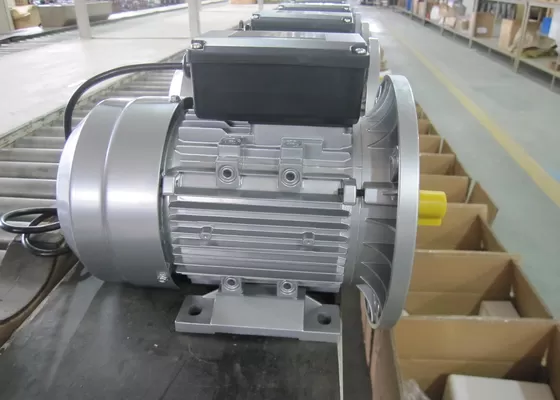

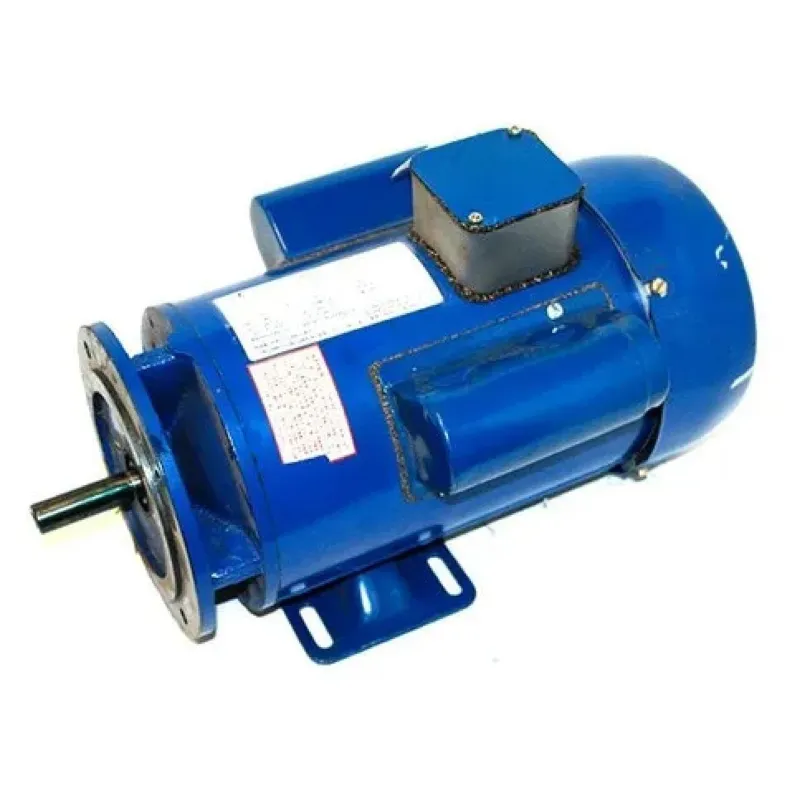

Single Phase Induction Motor - Energy Efficient (0.1kW to 3.7kW)
Our high-quality single phase induction motors are perfect for residential and light commercial applications across India. These energy-efficient motors (IE2 standard, IE3 available) feature quiet operation, durable construction, and easy maintenance. Ideal for water pumps, air compressors, and small machinery, our 220-240V motors come with thermal overload protection and IP54 enclosure for reliable performance in various environments. Available in capacitor start, split phase, and shaded pole configurations.
| Specification | Details |
|---|---|
| Power Range | 0.1 kW to 3.7kW (0.25HP to 5HP) |
| Voltage | 220-240V, 50Hz |
| Efficiency Class | IE2 Standard Efficiency (IE3 available) |
| Enclosure | IP54 (Totally Enclosed Fan Cooled) |
| Frame Sizes | 56 to 132M |
| Insulation Class | B (130°C) |
| Mounting | Foot Mounting (B3), Flange Mounting (B5/B14) options |
| Starting Method | Capacitor Start, Split Phase, or Shaded Pole |
| Ambient Temperature | -15°C to +40°C |
| Cooling | IC410 (Self-ventilated) |
| Protection | Thermal overload protection |
| Noise Level | <65 dB(A) |
