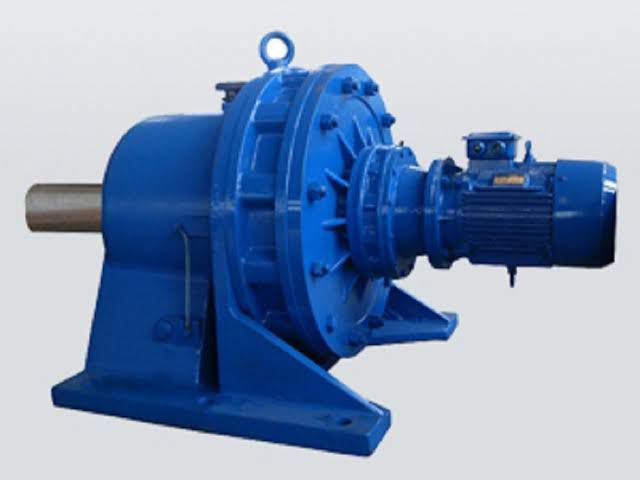

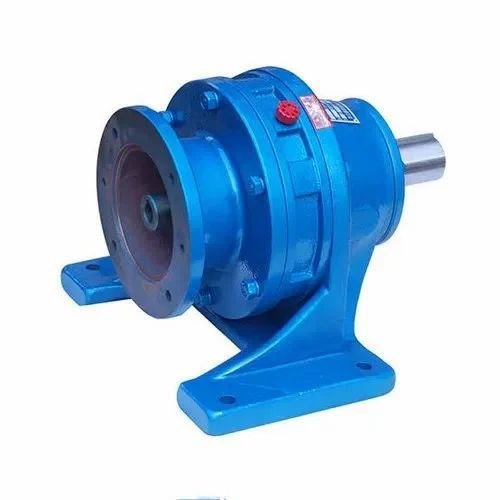

Cycloidal Gearboxes - High Precision Power Transmission
Our precision cycloidal gearboxes offer exceptional torque density and shock load capacity with minimal backlash. The unique cycloidal disc technology provides smooth operation, high efficiency, and long service life, making them ideal for robotics, automation, and other demanding motion control applications.
Technical Specifications
| Specification | Details |
|---|---|
| Ratio Range | 10:1 to 200:1 (Single and multi-stage configurations) |
| Housing Material | High-strength aluminum alloy or ductile iron |
| Cycloidal Discs | Precision-machined alloy steel, hardened and ground |
| Input Power | 0.1 kW to 30 kW |
| Output Torque | 10 Nm to 5000 Nm |
| Efficiency | 85-95% (depending on ratio) |
| Backlash | <3 arcmin (precision models available with <1 arcmin) |
| Shock Load Capacity | 500% of rated torque (momentary) |
| Mounting Positions | Any orientation (lubrication optimized for all positions) |
| Input Configurations | Solid shaft, hollow shaft, servo adapter, or IEC motor adapter |
| Output Configurations | Solid shaft, hollow shaft, or flange output |
| Lubrication | Synthetic grease (maintenance-free) or oil bath options |
| Protection Class | IP65 standard (IP67 optional) |
| Torsional Stiffness | High (Minimal angular deflection under load) |
Applications
- Industrial robotics and automation systems
- Packaging machinery and material handling equipment
- CNC machines and precision positioning systems
- Medical equipment and laboratory automation
- Renewable energy systems and wind turbines
