3-Phase Induction Motors

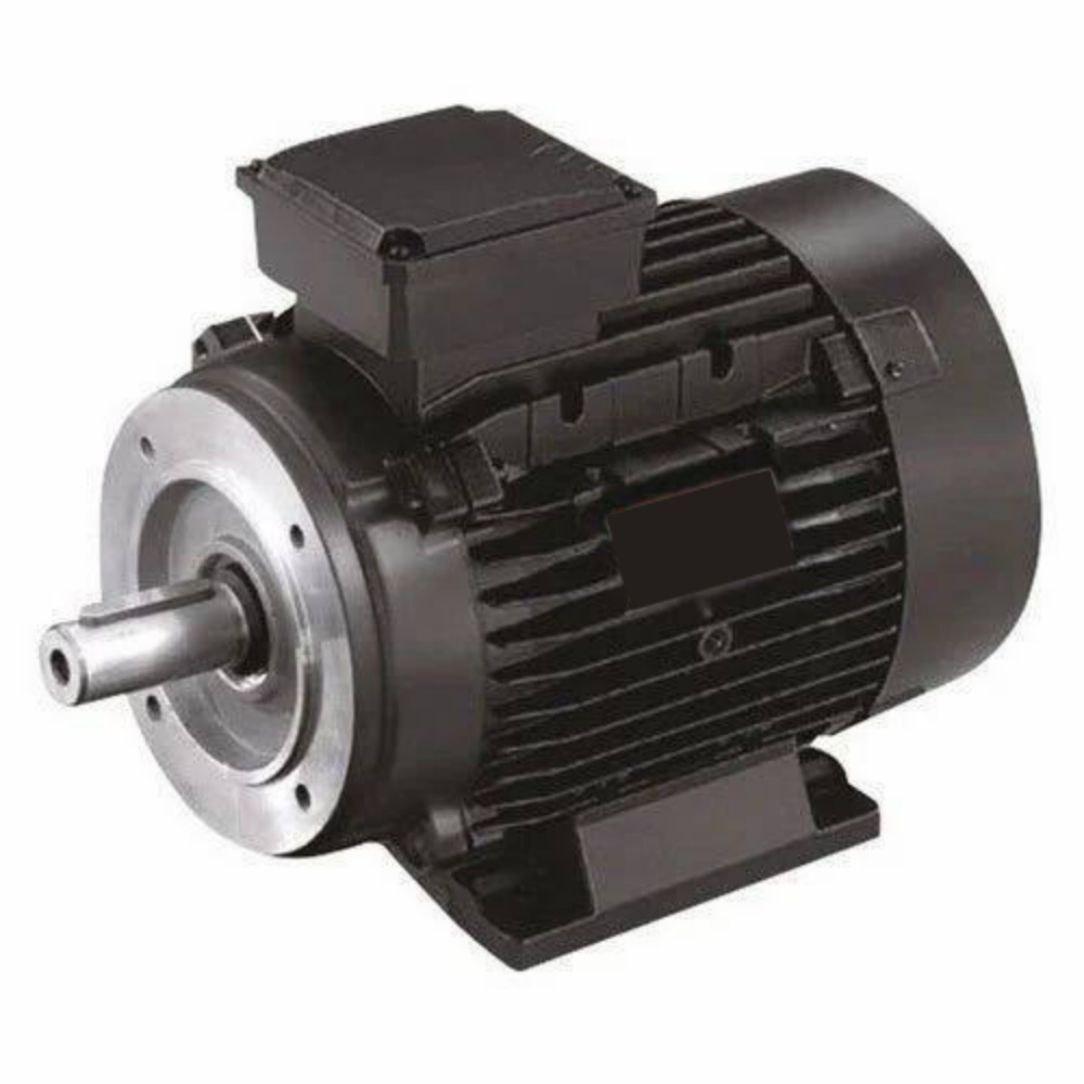

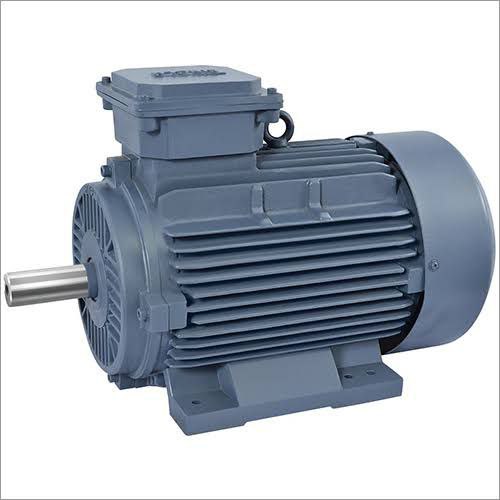

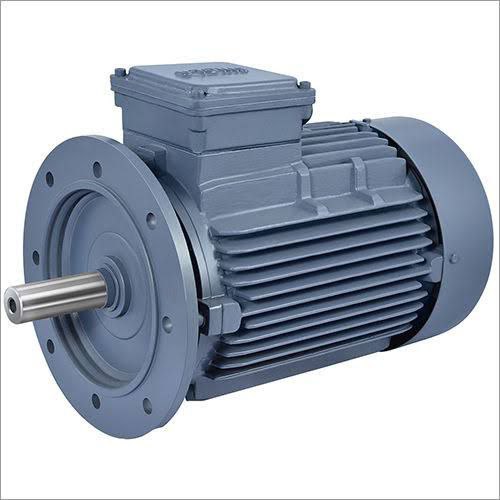

Our premium 3-phase induction motors are designed for industrial applications requiring high efficiency and reliable performance. These rugged motors feature advanced thermal protection and are built to withstand demanding operating conditions. Available in foot mounting (B3), flange mounting (B5), and face mounting (B14) configurations.
| Specification | Details |
|---|---|
| Power Range | 0.18 kW to 22.3 kW (0.25HP to 30HP) |
| Voltage | 380-415V, 50Hz (Custom voltages available) |
| Efficiency Class | IE1, IE2 Premium Efficiency (IE3 available) |
| Enclosure | IP55 (Totally Enclosed Fan Cooled) (IP65 Available) |
| Frame Sizes | 56 to 180L |
| Insulation Class | F (155°C) (H Class Available) |
| Mounting | Foot Mounting (B3), Flange Mounting (B5), Face Mounting (B14), various options available |
| Ambient Temperature | -20°C to +40°C |
| Cooling | IC411 |
| Protection | Thermal overload protection, moisture resistant |
| Standards | IEC, NEMA, IS (Custom standards available) |
