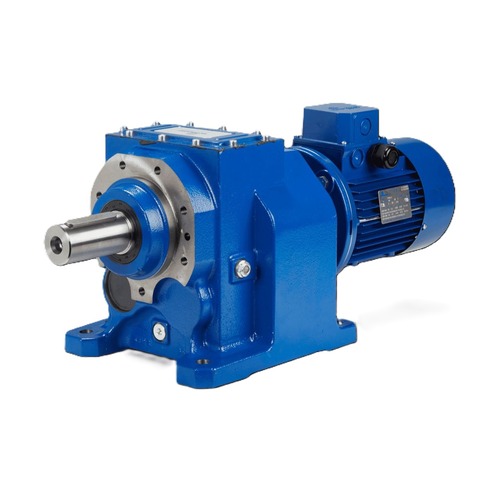

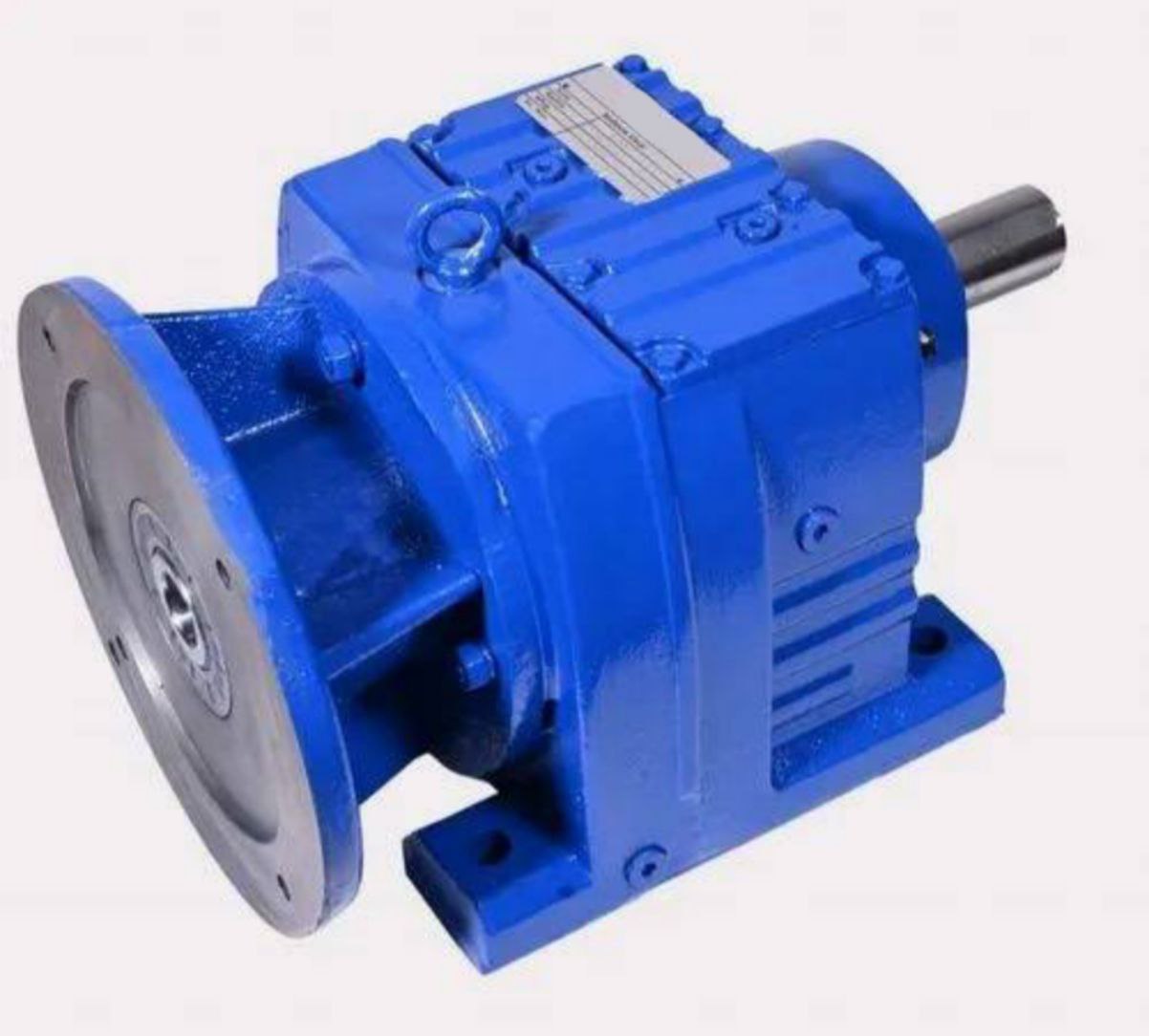

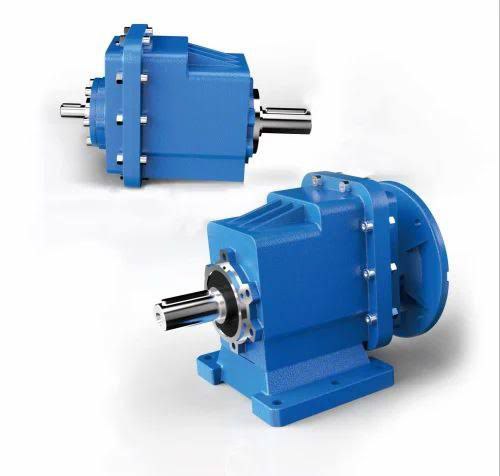

Helical Gearboxes - Precision Power Transmission Solutions
Our precision-engineered helical gearboxes offer smooth, quiet operation with high efficiency and excellent load distribution. The helical tooth design provides superior power transmission with reduced vibration, making them ideal for demanding industrial applications requiring reliable, continuous operation.
Technical Specifications
| Specification | Details |
|---|---|
| Ratio Range | 3:1 to 300:1 (Single, double, and triple reduction available) |
| Housing Material | High-grade cast iron (GGG50) or aluminum alloy |
| Gear Material | Case-hardened alloy steel, precision ground |
| Input Power | 0.5 kW to 22.37 kW |
| Efficiency | 94-98% (per stage) |
| Backlash | <10 arcmin (precision models available with <5 arcmin) |
| Mounting Positions | Foot mounted (B5), flange mounted (B14), or shaft mounted |
| Input Configurations | Solid shaft, hollow shaft, IEC motor adapter, or servo adapter |
| Output Configurations | Solid shaft, hollow shaft, or torque arm |
| Lubrication | Synthetic polyalphaolefin (PAO) oil (Splash or forced lubrication) |
| Protection Class | IP65 standard (IP66 optional) |
| Temperature Range | -20°C to +120°C (with high-temperature lubrication option) |
| Noise Level | <65 dB(A) at 1m distance |
Key Applications
- Conveyor systems and material handling equipment
- Mixing and agitation machinery
- Packaging and processing lines
- Crane and hoist mechanisms
- Industrial fans and blowers
